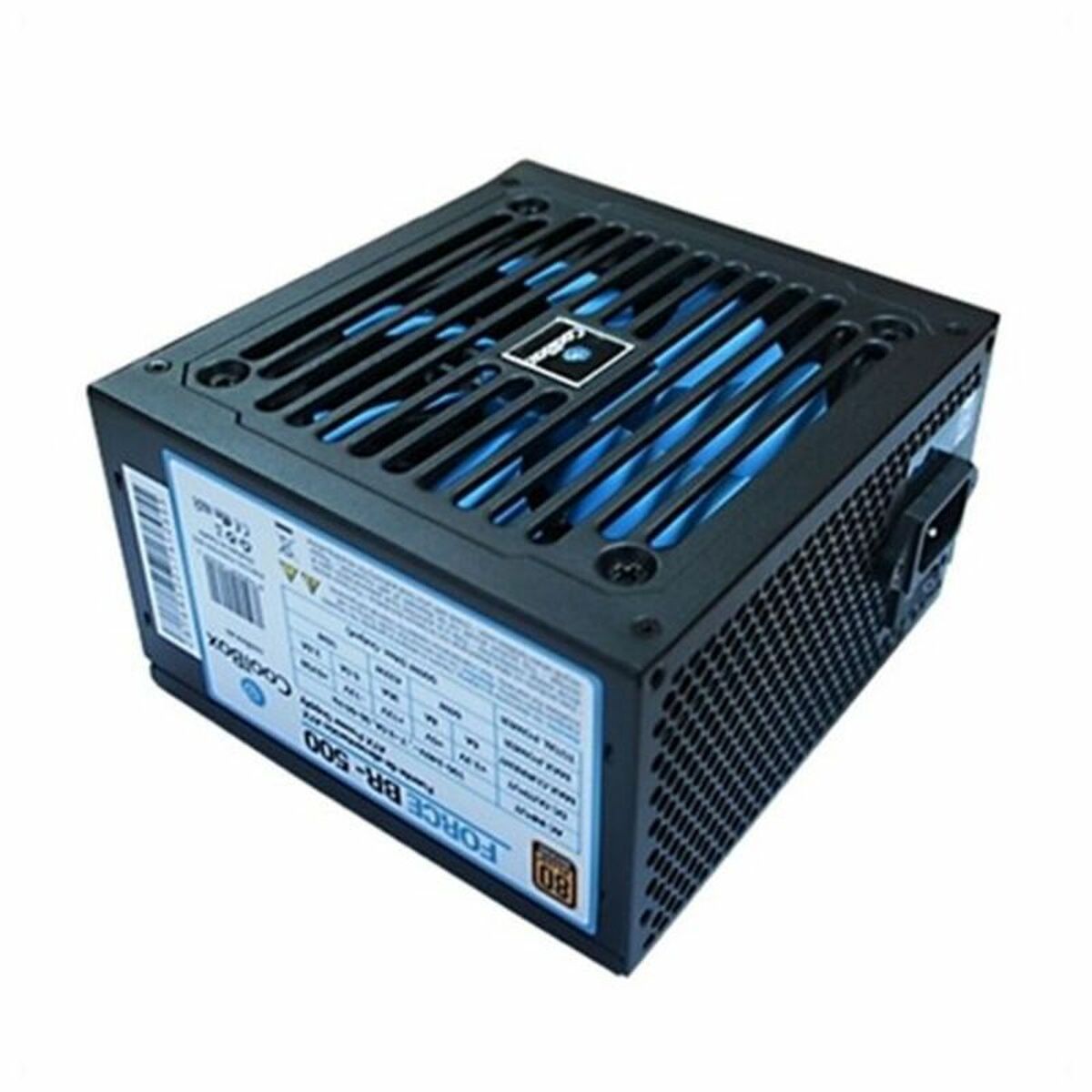

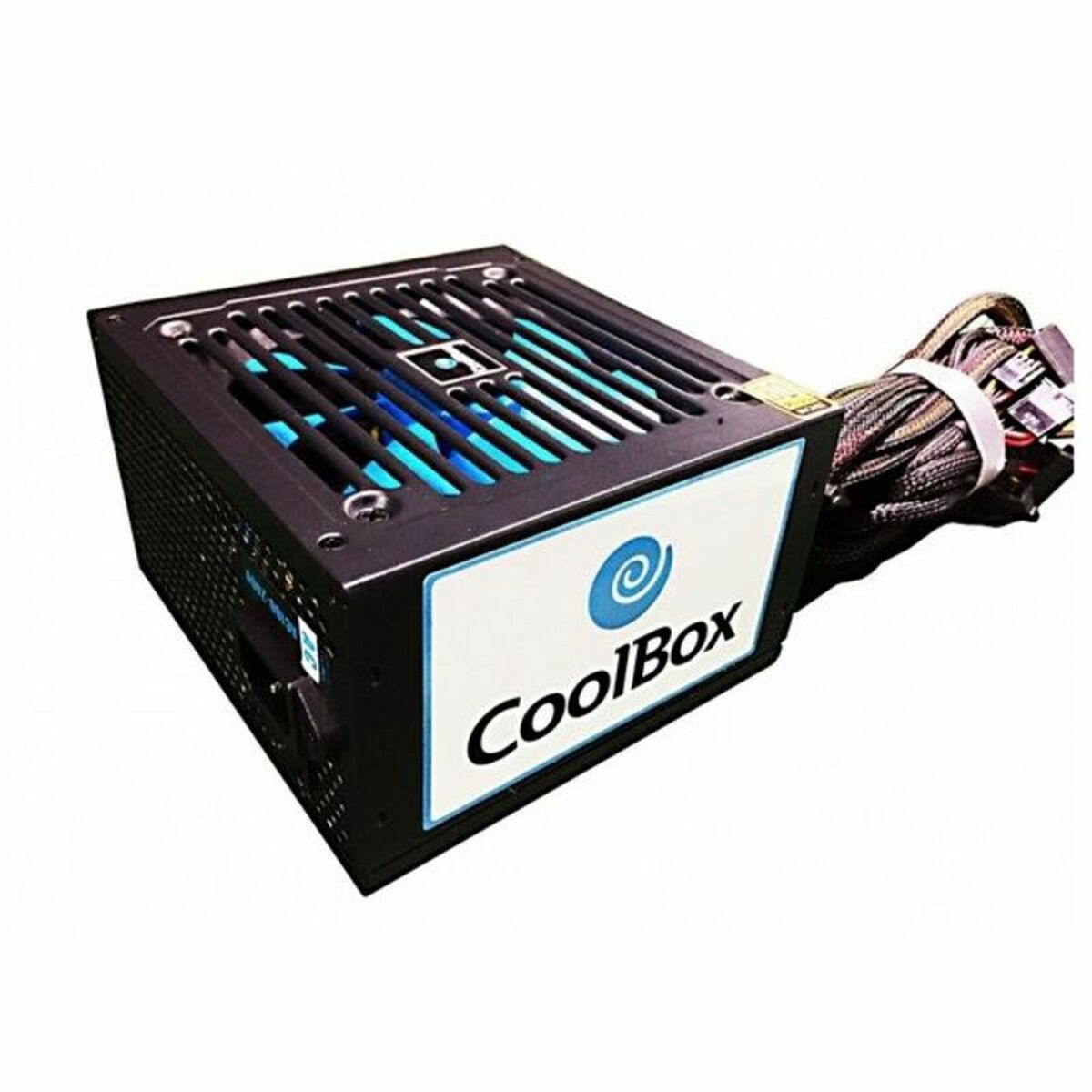

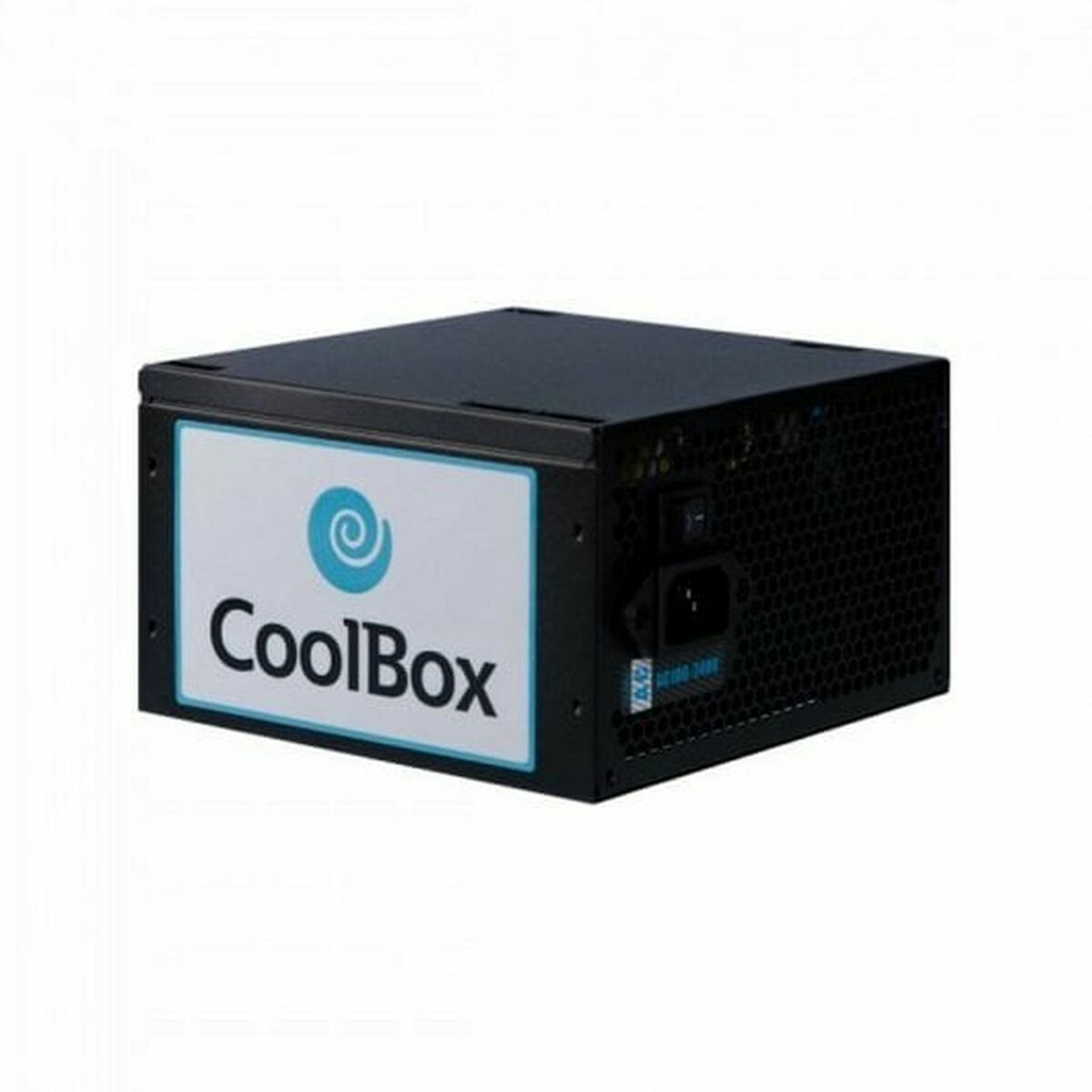

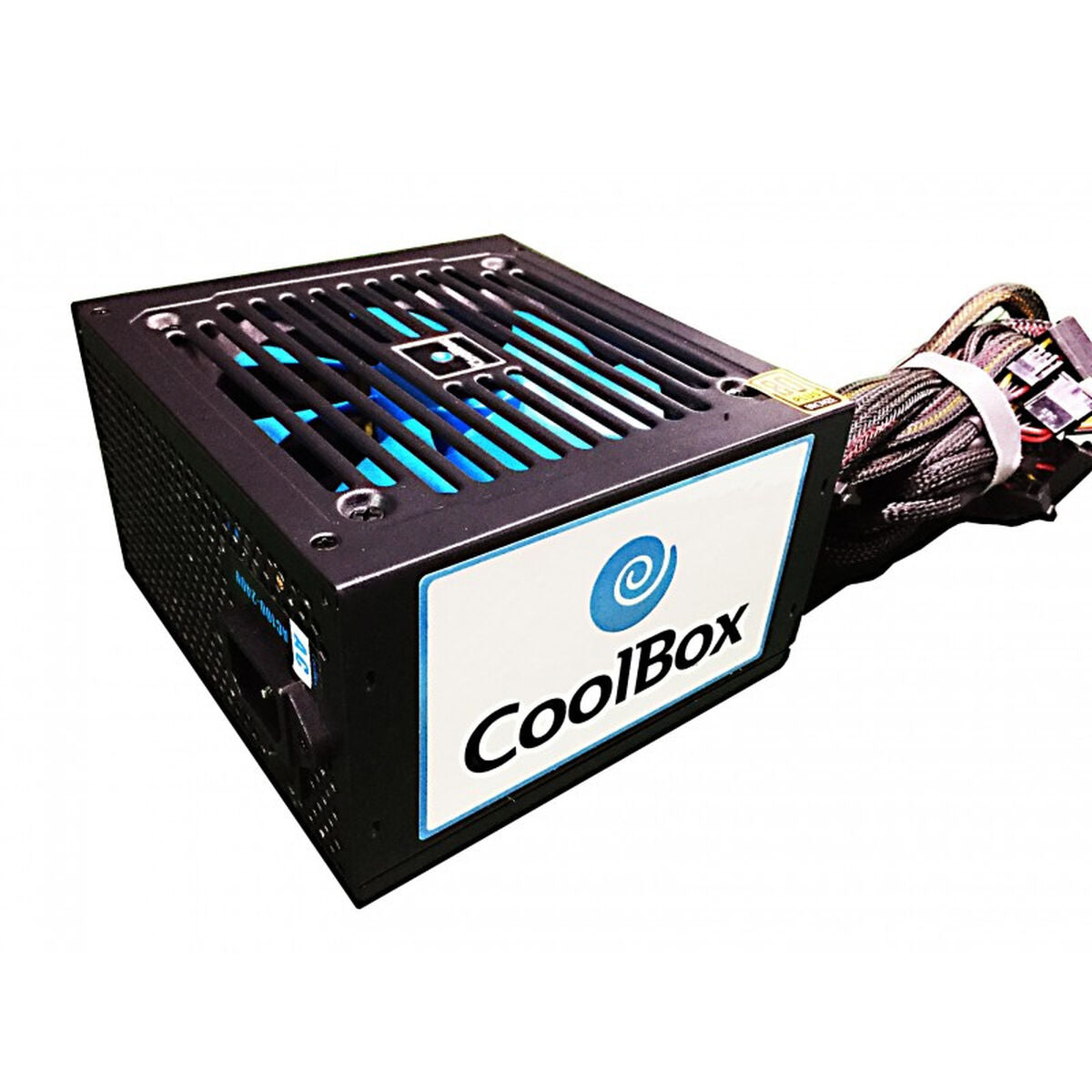

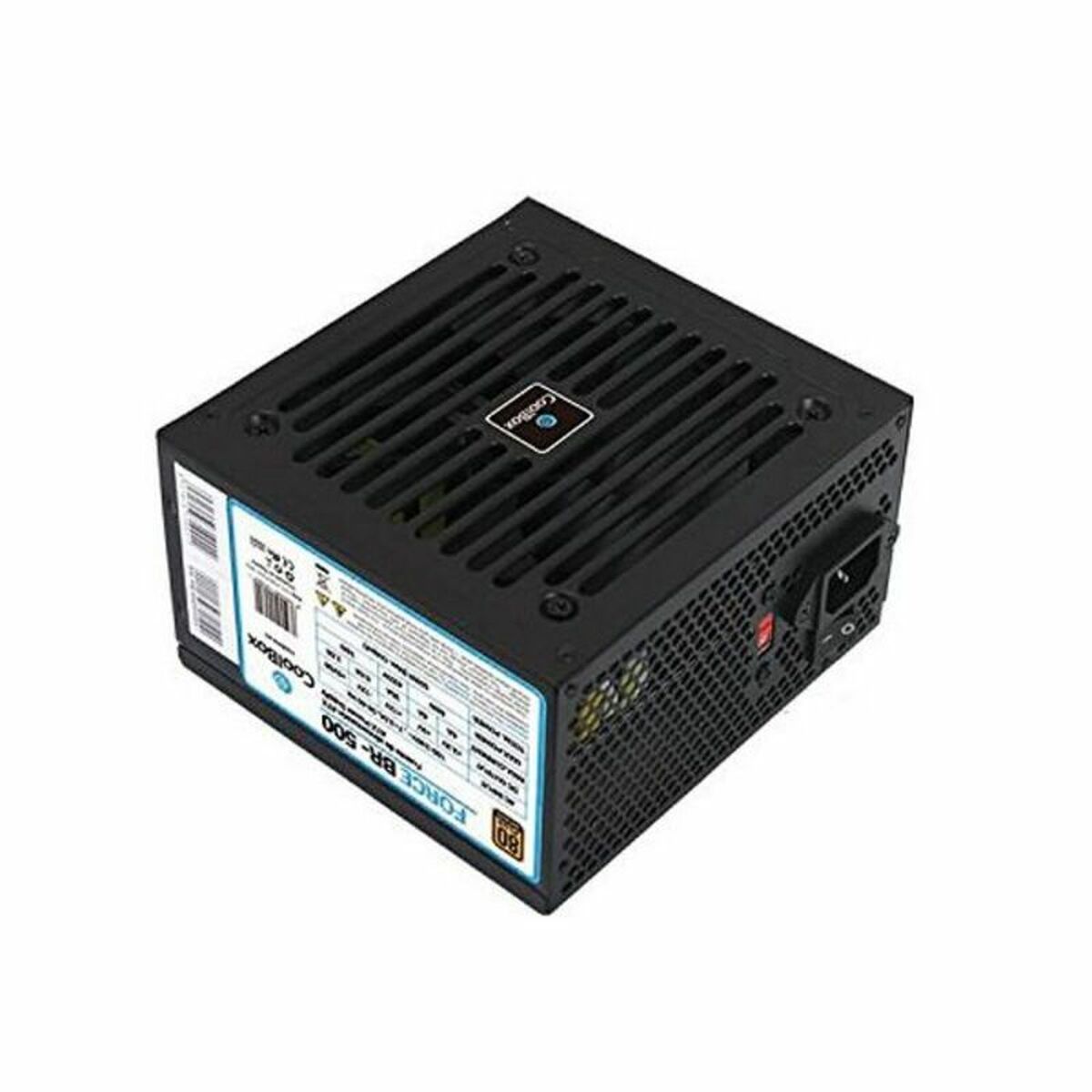

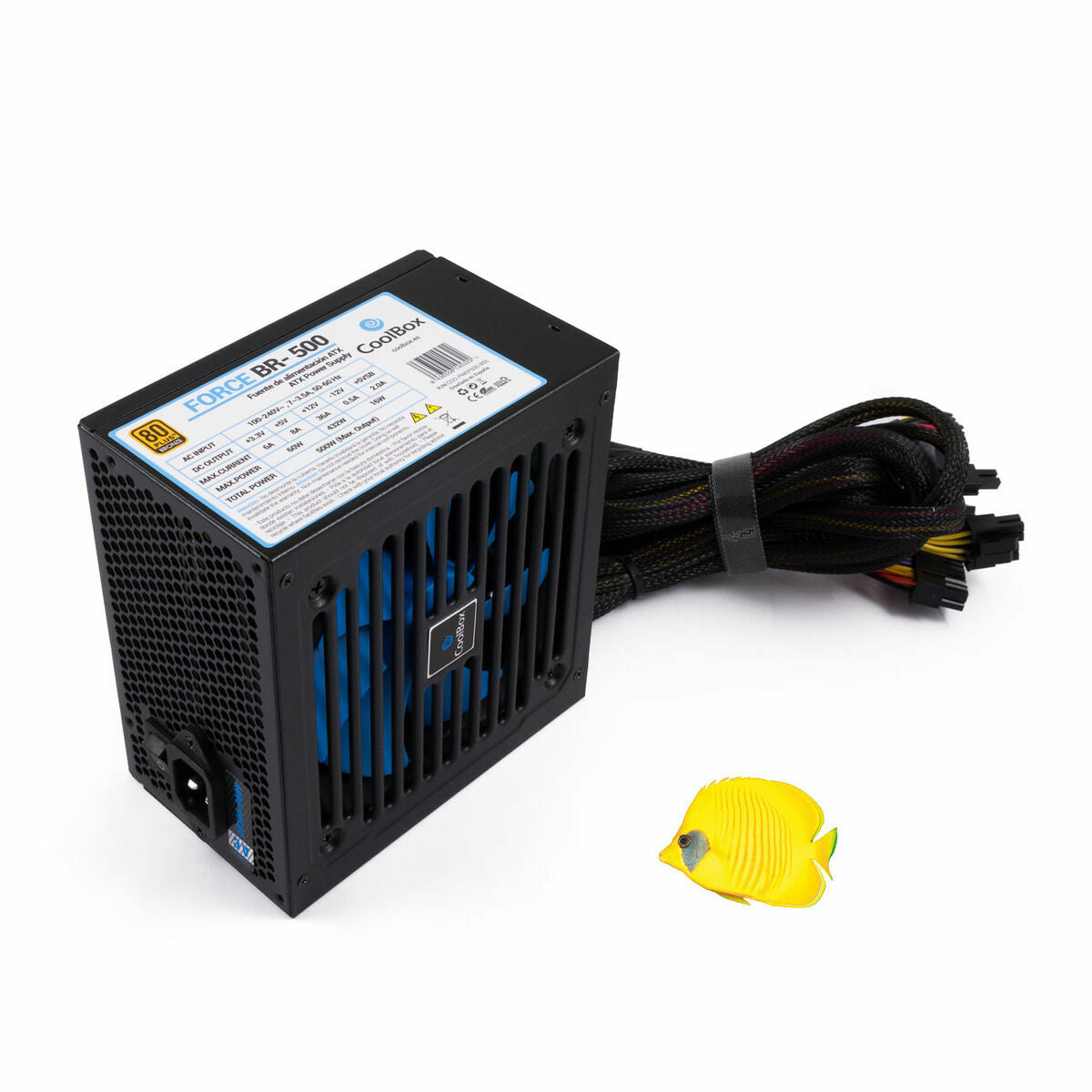

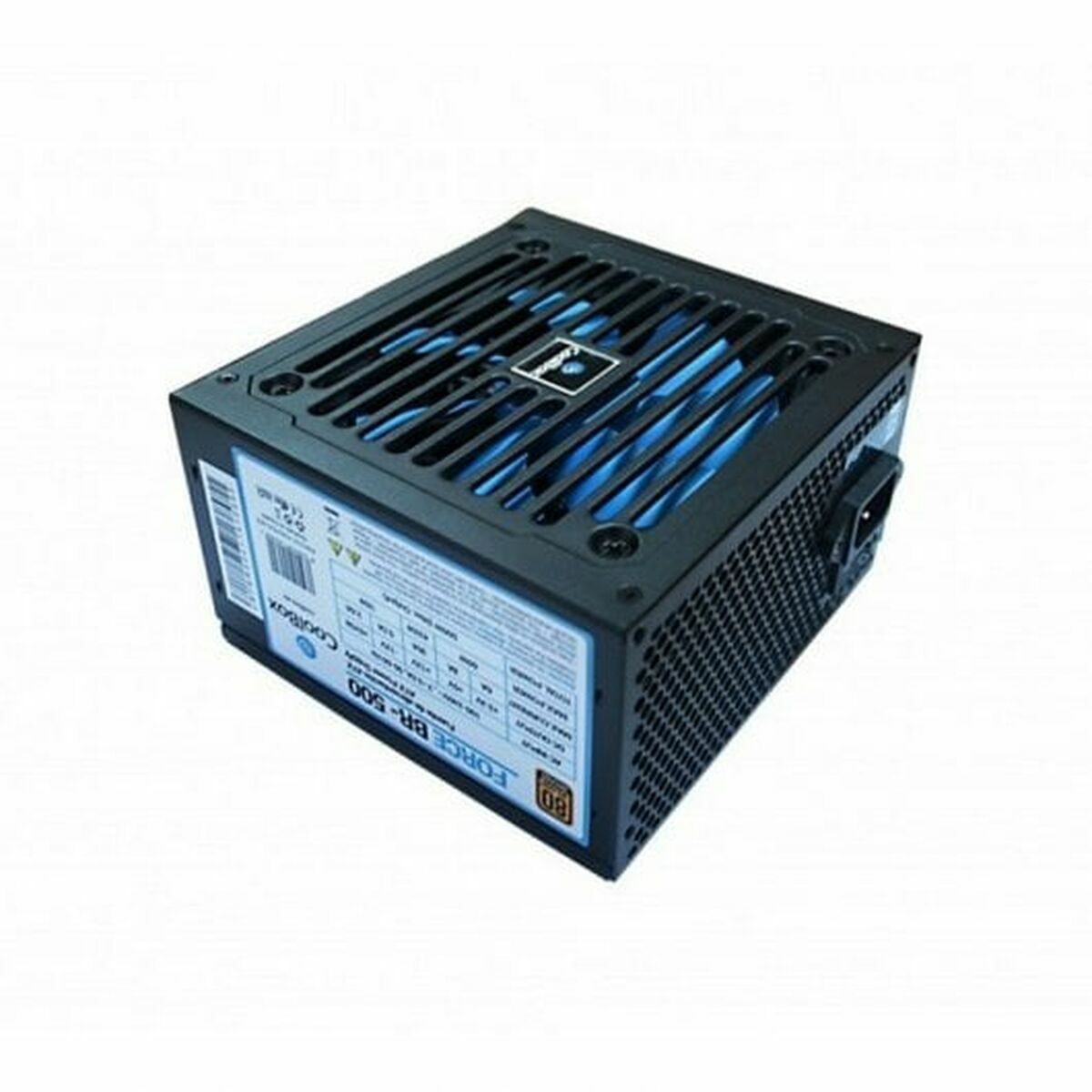

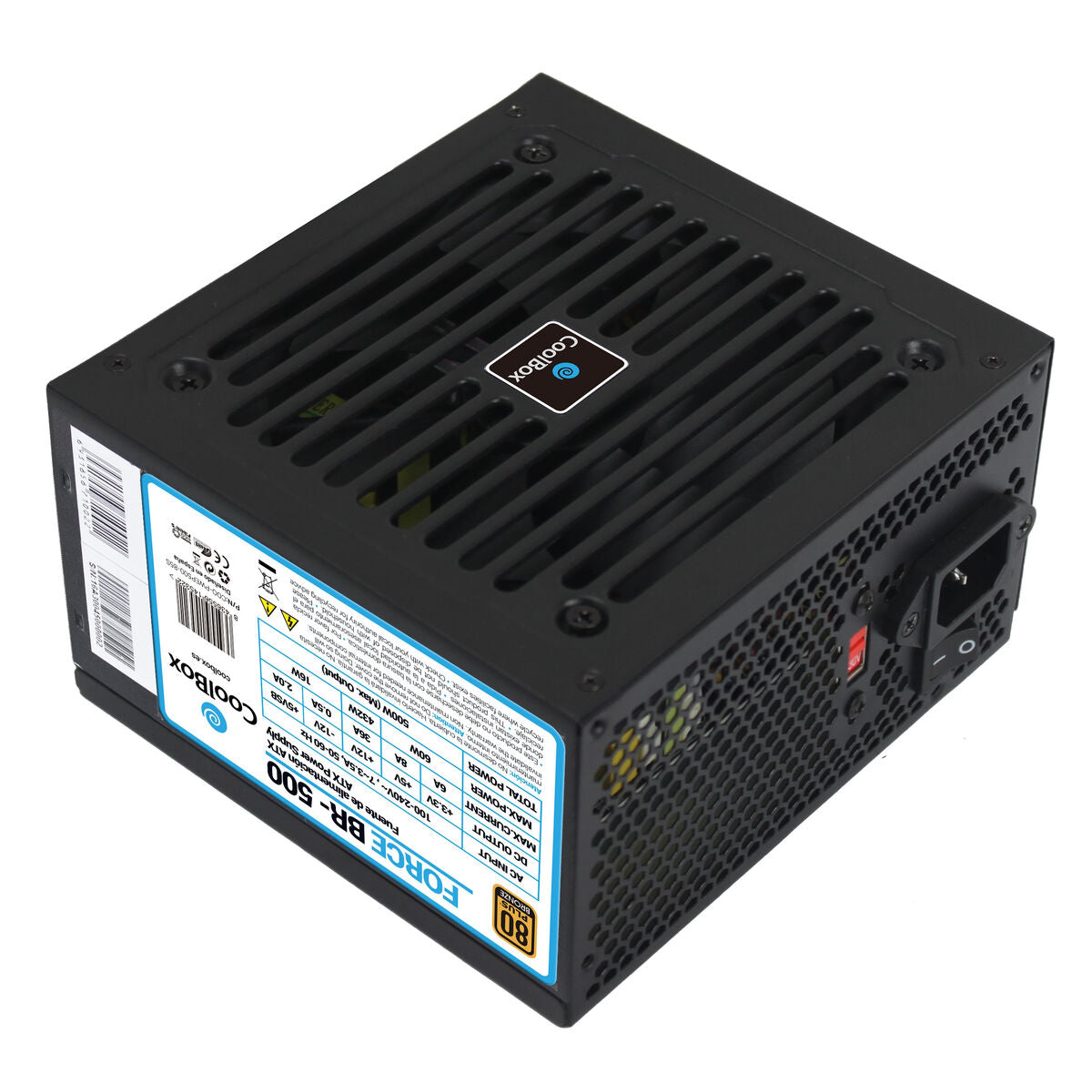

Power supply CoolBox Force BR-500 ATX 80 Plus Bronze 500 W

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply CoolBox Force BR-500 ATX 80 Plus Bronze 500 W at an unbeatable price.

• Form factor: ATX
• Power: 500 W
• Ventilator:
  • Ø 12 cm
  • 1
• Connections:
  • ATX 24 pin x 1
  • 12V 8 pin x 1
  • SATA x 4
  • PCIe 8 PIN x 1
  • 24 PIN x 1
  • PCI Express
  • Molex 4-pin x 4
• Certificate: 80 Plus Bronze
• Product with plug: Yes
• Type of plug: Plug EU
• Type: Power supply
• Colour: Black
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Version ATX: 2.31
• Characteristics: On/off interrupter
• Power supply: CA cable
• Connectors:
  • Diskette unit
  • SATA x 4
• Compatible: ATX
• Amperage:
  • 2 A
  • 6 A
• Includes: User manual

CoolBox Force BR-500. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC/server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Package type: Box

• Total power: 500 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Maximum input current (@110V): 7 A
• Maximum input current (@220V): 3.5 A
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 60 W
• Combined power (+12V): 432 W
• Combined power (+5V): 60 W
• Combined power (-12V): 16 W
• Combined power (+5Vsb): 16 W
• Max output current (+3.3V): 6 A
• Max output current (+12V): 36 A
• Max output current (+5V): 8 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2 A
• Efficiency: 85%
• Power protection features: Over power,Over voltage,Short circuit,Under voltage
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 4
• Number of SATA power connectors: 4
• PCI Express power connectors (6+2 pin): 1
• CPU power connector (4+4 pin): Y
• Floppy drive power connector: 1
• Floppy disk drive connector: Y
• PCI Express connector: Y
• Purpose: PC/server
• Power supply unit (PSU) form factor: ATX
• 80 PLUS certification: 80 PLUS Bronze
• ATX version: 2.31
• RoHS compliance: Y
• Certification: CE, WEEE
• Product colour: Black
• Cooling type: Active

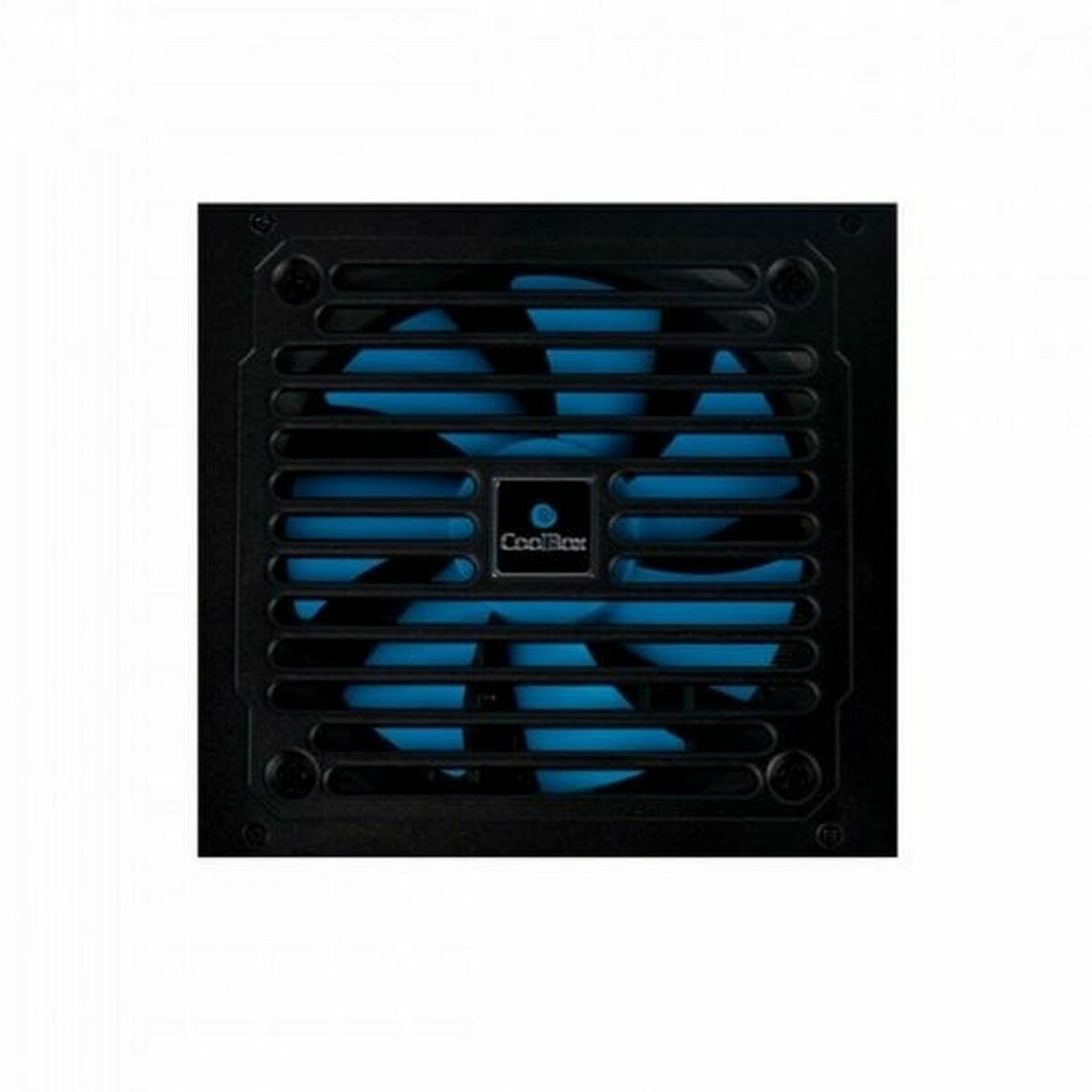

• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Fan location: Top
• On/off switch: Y
• Cables included: AC
• Package type: Box
• Manual: Y
